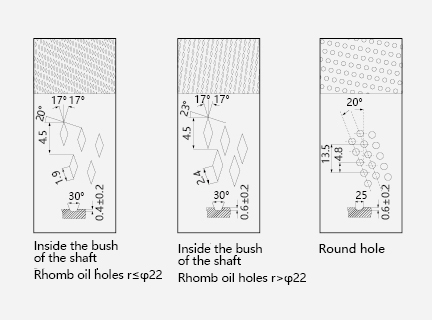

FB090 is a kind of bushes wrapped by bronze strip. The bronze is made as the particular formulation with high specific and gravity, and on its surface may be incorporated with spherical or diamond shaped indentations or/and oil grooves as required by customers. It is of high load capacity and long life, in place of traditional casting bronze bush. It is more cheap and more compact. It is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.
Download the size table
1. Saving large amount of bronze material and save the working hours normally spent for lathing the bronze bushing.
2. Compared with lathed bushings and roller bearings, it is lights and more cost-effective.
3. Various holes and dents can be made on the frication surface for grease storage, prolonging the lubrication interval to 5 times as long as required by the bronze bushing.
4. Extremely high load sustainability, especially suitable for coarse abrasion surfaces.
Standard products available: straight bushings, thrust plates and pressure bearings.
Non-standard products available: straight bushings, thrust plates, planks, bearing bushings, slide plates and steel bushing assembly.
| Material | Cu | Sn | P | Pb | Zn |
|---|---|---|---|---|---|
| CuSn8P0.3 | 91.7% | 8.5% | 0.2% | - | - |
| CuSn6.5P0.1 | 93.4% | 6.5% | 0.1% | - | - |
| Performance | Data |
|---|---|
| Hardness | HB90~120 |
| Working Temperature | -80℃~200℃ |
| Max Load Capacity P | 75N/mm² |
| Speed limit V | 2.5m/s |
