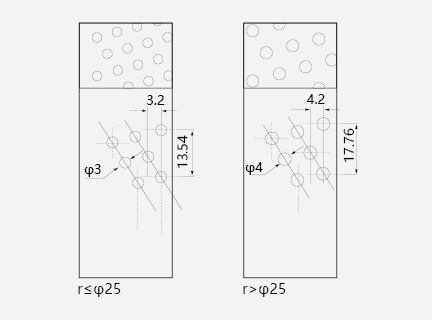

FB092 bronze bushing is based on bronze of CuSn8.0P0.3 and evenly distributed drilling oil holes on the body. When in assembly, oil or grease should be stored in the holes before bushing is sealed from both ends. FB092 has the advantages of abundant oil storage, easy-to-assembly, machine compactness etc. It can replace the conventional whole copper sleeves, thus to save much cost. It is mostly applied under middle load, low speed such as in convey machine, hoisting machine, windlass, aligning machine etc.
Download the size table
1. Saving large amount of bronze material and save the working hours normally spent for lathing the bronze bushing.
2. Compared with lathed bushings and roller bearings, it is lights and more cost-effective.
3. Various holes and dents can be made on the frication surface for grease storage, prolonging the lubrication interval to 5 times as long as required by the bronze bushing.
4. Extremely high load sustainability, especially suitable for coarse abrasion surfaces.
Standard products available: straight bushings, thrust plates and pressure bearings.
Non-standard products available: straight bushings, thrust plates, planks, bearing bushings, slide plates and steel bushing assembly.
| Material | Cu | Sn | P | Pb | Zn |
|---|---|---|---|---|---|
| CuSn8P0.3 | 91.7% | 8.5% | 0.2% | - | - |
| CuSn6.5P0.1 | 93.4% | 6.5% | 0.1% | - | - |
| Performance | Data |
|---|---|
| Hardness | HB90~120 |
| Working Temperature | -100℃~200℃ |
| Max Load Capacity P | 60N/mm² |
| Speed limit V | 2.5m/s |
